Description

The Canbat CLI100-12 is a high-performance 12V 100Ah lithium battery designed with advanced LiFePO4 technology for superior reliability and efficiency. Developed and designed in Canada for various applications, including RVs, marine systems, off-grid solar energy, and other deep-cycle power needs. It is lightweight and compact, offers thousands of cycles, has an integrated Bluetooth BMS and is UL1642 certified for maximum safety and highest performance.

Built for Long-Term Durability and Performance
The CLI100-12 utilizes Grade A prismatic cells and features a rugged design, ensuring a longer lifespan and consistent power. There are three main types of LiFePO4 cells: pouch, cylindrical and prismatic. While most competitors use the cheaper pouch and cylindrical cells, the Canbat 12V 100Ah LiFePO4 battery is built with prismatic cells, the most advanced and safest LiFePO4 technology. Pouch cells have a flexible, soft outer casing and are prone to swelling and damage over time. Cylindrical cells are robust with a steel casing but have a low energy density. Prismatic combines efficient space usage and durability, with a rigid structure that enhances safety, cycle life, and thermal performance. The Canbat 12V 100Ah LiFePO4 battery has a 100% useable capacity and can be fully discharged and recharged thousands of times.

Lightweight and Compact Design
Weighing just over 26 pounds, it’s the perfect lithium battery for marine applications and those seeking to reduce the weight of their RV or solar energy setups without compromising power. Despite its compact size and lightweight, the CLI100-12 offers 100Ah of usable capacity and is designed as a drop-in replacement for Group 27 and 31 batteries, making it an easy upgrade for existing systems. The battery features screw-in M8 terminals with two sets of bolts included with every battery. One set of shorter bolts (12mm) for applications with minimal connections, and one set of longer bolts for applications requiring more connections.

Versatile Power Solution

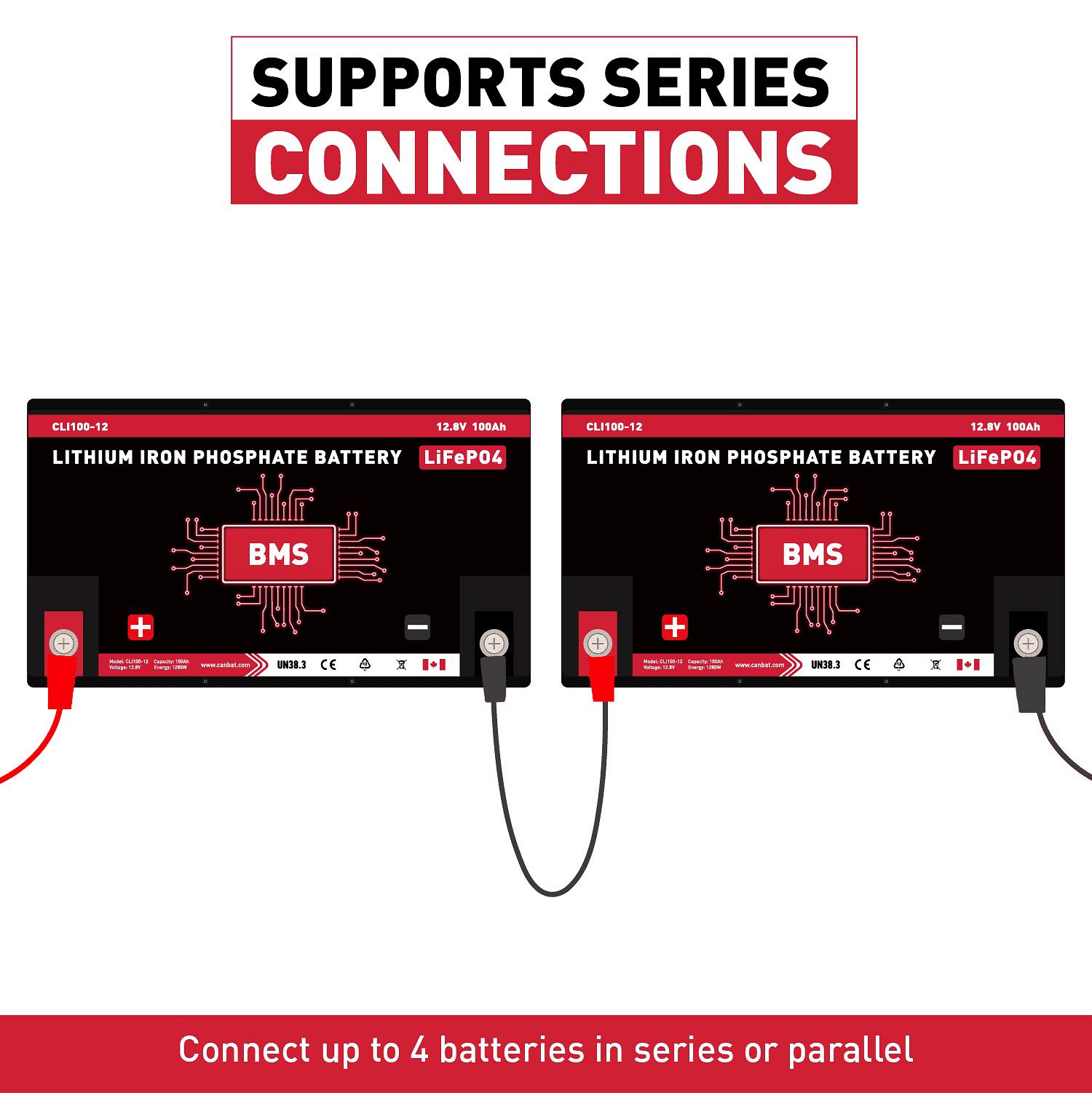

Unlike other 12V 100Ah LiFePO4 batteries on the market, the Canbat 100Ah lithium battery supports parallel and series connections. Parallel connections allows for expanding capacity (e.g., 12V 200Ah, 12V 300Ah, 12V 400Ah) and series connections to increase voltage (e.g., 24V, 36V, or 48V configurations). This makes it ideal for a range of applications, from solar energy storage systems to robots and backup power systems.

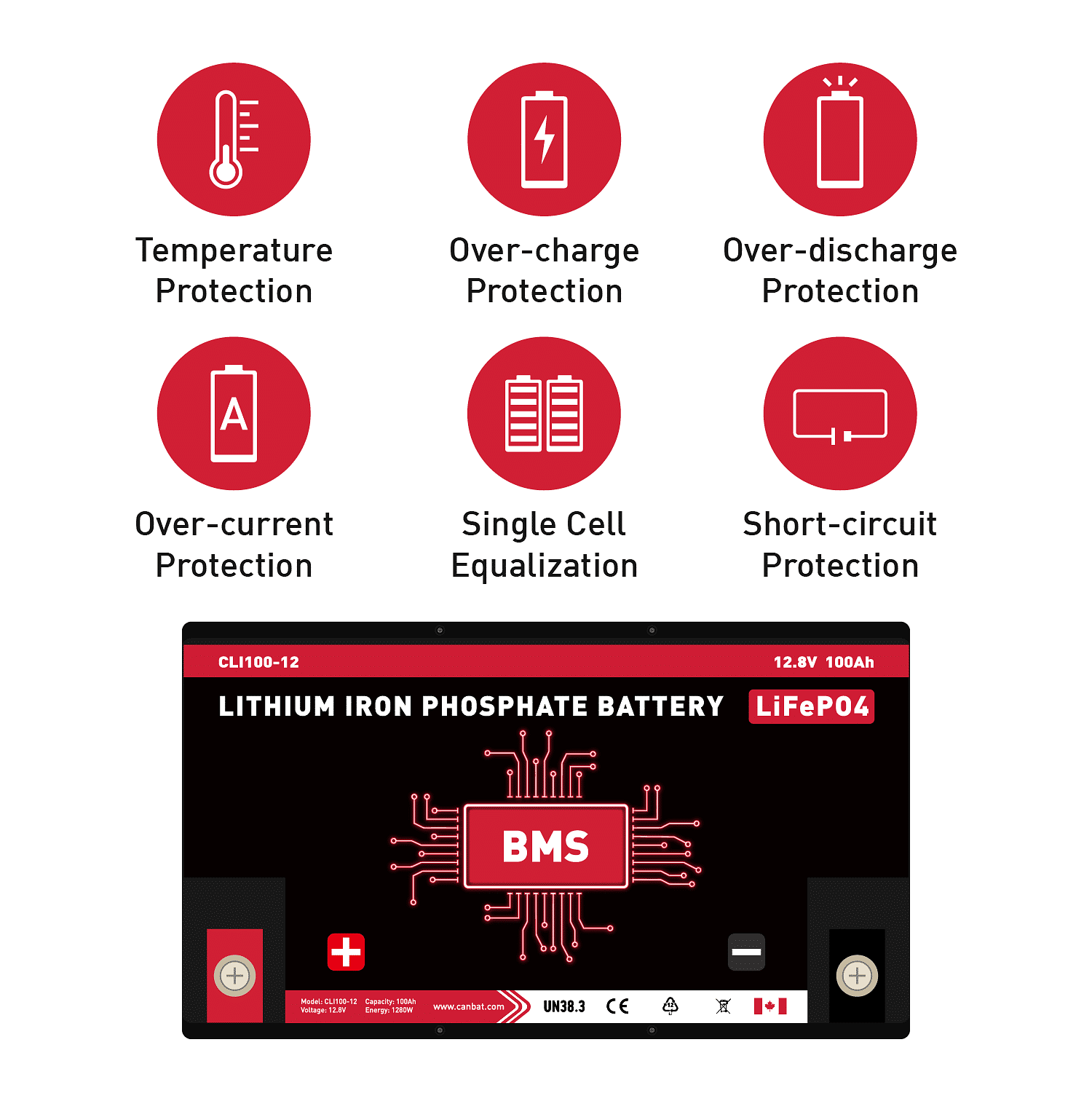

Advanced Battery Management System (BMS)
Equipped with an internal BMS, the CLI100-12 ensures optimal safety and longevity. The BMS protects against:

• Low-temperature
• High-temperature
• Over-charge
• Over-discharge
• Internal short circuits

The battery management system is intelligent and works seamlessly to protect the battery, optimize performance, increase efficiency, balance cells and extend lifespan.

Certified Safety Standards
The Canbat CLI100-12 is UL1642 certified, meeting stringent safety standards and providing peace of mind for users. This certification ensures that the battery has undergone rigorous testing for safety, reliability, and performance. Lithium batteries must be certified to ensure safe operations. UL1642 is a safety standard established by Underwriters Laboratories (UL) for lithium batteries. It sets requirements for the safe design, construction, and testing of lithium-ion and lithium-metal cells and batteries to ensure they do not pose risks of fire, explosion, or leakage. The standard covers various aspects such as thermal performance, electrical safety, and mechanical integrity to ensure that the batteries perform safely under normal and abnormal conditions.
Compliance with UL1642 indicates that a lithium battery has passed rigorous safety tests.

Bluetooth Monitoring
For further safety and peace of mind, the Canbat 12V 100Ah lithium battery comes with built-in Bluetooth technology, which allows for real-time monitoring of battery status, charge levels, and health. This feature makes it easier for users to track performance, detect potential issues early, and optimize battery use for extended service life. The Canbat Bluetooth app is available for both IOS and Android devices. The Bluetooth monitoring feature offers several key advantages for users of Canbat lithium batteries:

• Real-Time Monitoring: Track voltage, state of charge (SOC), current, temperature, and health in real-time for better performance management. Convenience: Easily check battery status from a smartphone or tablet, eliminating the need for physical inspections.
• Preventative Maintenance: Get alerts for issues like overvoltage, undervoltage, or high temperature, allowing proactive actions to avoid damage./li>
• Enhanced Battery Life: Optimize charging cycles, temperature, and discharge rates to maximize lifespan./li>
• Remote Access: Monitor batteries in hard-to-reach locations, such as RVs or boats, without manual checks./li>
• Ease of Troubleshooting: Error alerts simplify troubleshooting by quickly identifying issues./li>
• Better Energy Management: Understand battery performance to optimize energy consumption and ensure efficient use in applications like off-grid solar, RVs, and marine setups./li>

Bluetooth monitoring provides greater control, safety, and efficiency for users.

Industry-leading 10-year warranty

Applications for CLI100-12
The 12V 100Ah lithium battery is perfect for a wide range of industries and uses, including:

• Recreational vehicles (RVs)
• Marine and boating systems
• Off-grid solar power systems
• Electric wheelchairs and mobility scooters
• Backup power for UPS systems
• Medical equipment
• Telecommunications
• Street lighting
• Renewable energy storage
• Aerospace and military applications

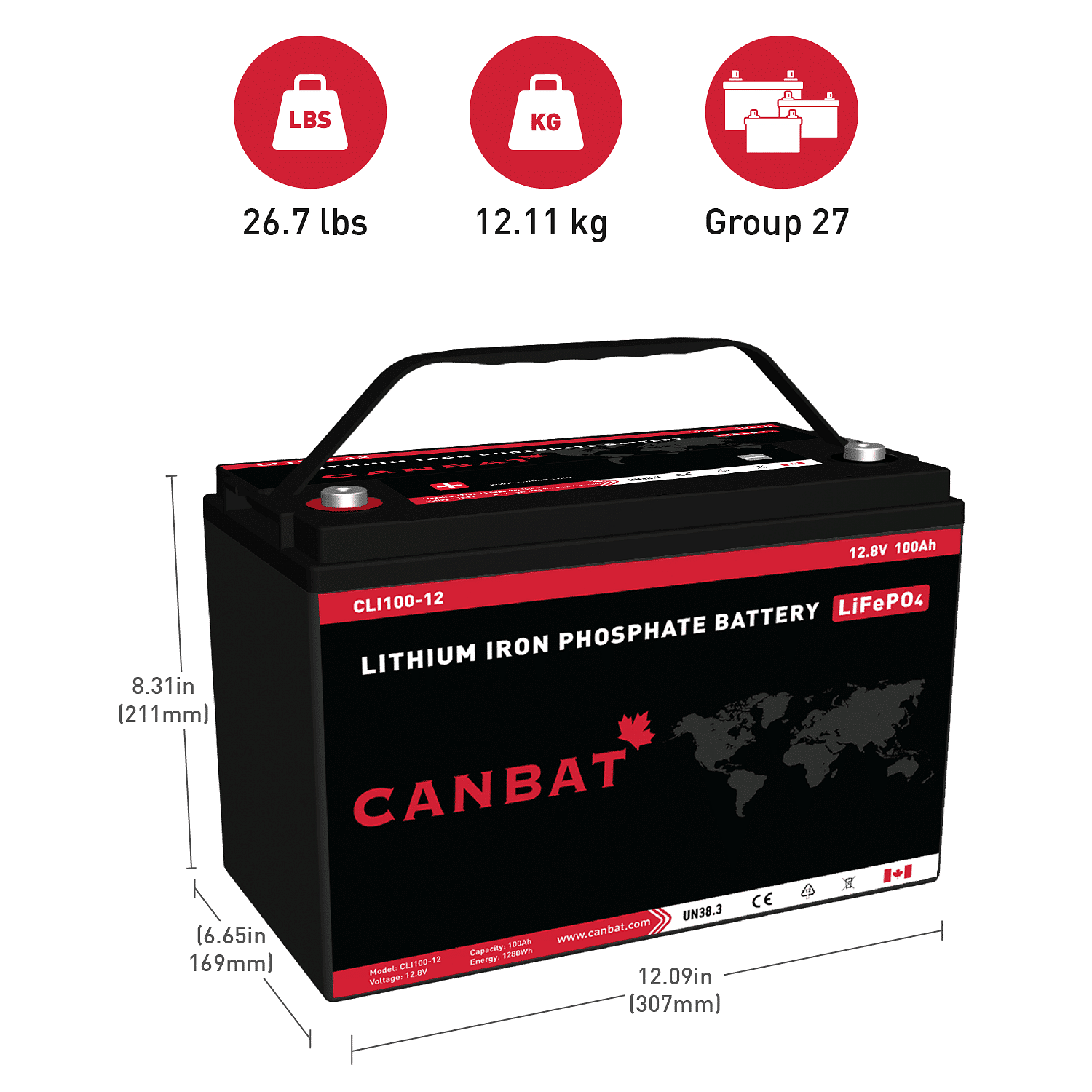

Specifications of the Canbat 12V 100Ah Lithium Battery

• Length: 304.8 mm (12 inches)
• Width: 165.1 mm (6.5 inches)
• Battery Height: 209 mm (8.25 inches)
• Approx Weight: 11.79 kg (26 lbs)
• Voltage: 12.8V
• Capacity: 100Ah
